Ethernet Wired

1. Overview

This article mainly introduces how to use the Device Pairing SDK (Wtih UI) and Device Pairing SDK (Without UI) to configure Ethernet (Ethernet) wired network.

2. Preconditions

1. Confirm completion Preparation
2. Confirm the completion of Environment Build
3. Complete Device Pairing SDK (With UI) or Device Pairing SDK (without UI) integration

3. Use

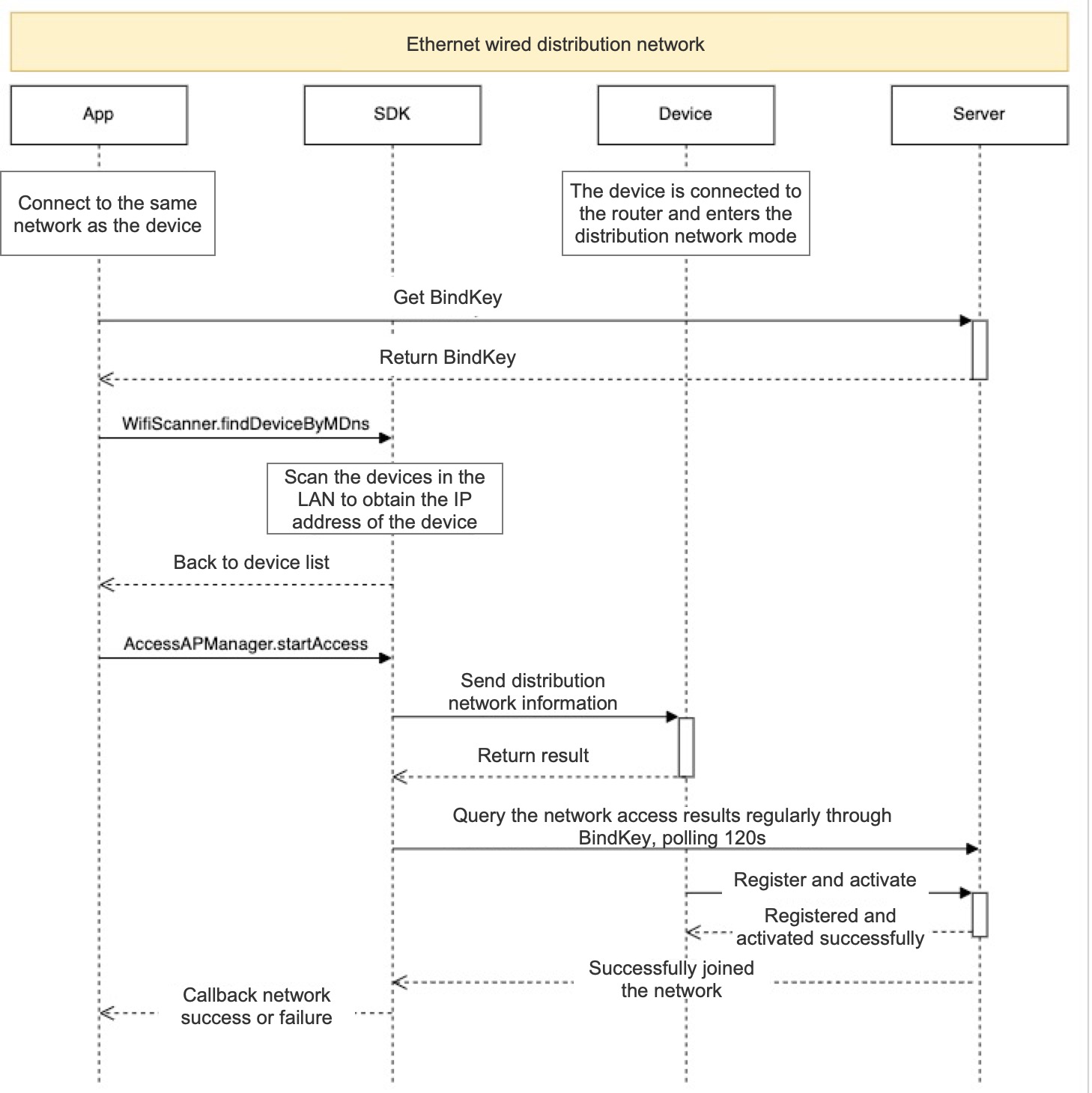

3.1 Device Pairing Process

Device Pairing by Ethernet (Ethernet) wired means that the device is connected to the network (router) through a wired line, eliminating the need for the user to enter the account/password during the device pairing process, directly sending the device pairing information to the device, and finally completing the registration, Binding and other activation operations.

3.2 Device Pairing SDK (With UI)

3.2.1 Jump to the Device Pairingk list page

Jump to the select device list page, which lists all the devices supported by the current SDK.

   LMAccessSDKManager.Companion.getInstance()
                .gotoAccessListPage(
                        this,
                        "homeId",
                        "roomId",
                        "coapServer",
                        new LumiResultCallBack() {
                            @Override
                            public void success(@NonNull WeakReference<Activity> weakReference, @Nullable String s) {

                            }

                            @Override
                            public void fail(@Nullable Integer integer, @Nullable String s) {

                            }
                        }
                );

Parameter Description

3.2.2 Jump to the specified device configuration page

LMAccessSDKManager.Companion.getInstance()
        .gotoAccessConfigModule(
                this,
                "deviceModel",
                "homeId",
                "roomId",
                "coapServer",
                new LumiResultCallBack() {
                    @Override
                    public void success(@NonNull WeakReference<Activity> weakReference, @Nullable String s) {

                    }

                    @Override
                    public void fail(@Nullable Integer integer, @Nullable String s) {

                    }
                }

        );

Parameter Description

3.3 Device Pairing SDK (without UI)

3.3.1 Get BindKey

The third-party app needs to request the cloud interface to obtain by itself. See Interface Documentation

3.3.2 Discover device

WifiScanner wifiScanner = new WifiScanner(this);
wifiScanner.findDeviceByMDns(2000L)
        .onTerminateDetach()
        .as(AutoDispose.autoDisposable(AndroidLifecycleScopeProvider.from(this)))
        .subscribe(new Consumer<List<LANDeviceEntity>>() {
            @Override
            public void accept(List<LANDeviceEntity> lanDeviceEntities) throws Exception {

            }
        }, new Consumer<Throwable>() {
            @Override
            public void accept(Throwable throwable) throws Exception {

            }
        });

Parameter Description

3.3.3 Send device pairing information

AccessConfigBean accessConfigBean = new AccessConfigBean(
        "coapServer",
        "bindKey"
);

AccessAPManager manager = new AccessAPManager.WifiAccessBuilder()
        .setAccessInfo(accessConfigBean)
        .setDeviceIp("Device ip address")
        .setAccessMode(AccessAPManager.WifiAccessMode.ACCESS_MODE_TETHERNET)
        .setAccessListener(new IAccessListener() {
            @Override
            public void connectSuccess() {

            }

            @Override
            public void accessResult(@Nullable String s) {

            }

            @Override
            public void accessFail(int i, @Nullable String s) {

            }
        })
        .build(this);

//Start to configure the network
manager.startAccess();

//Call resource recycling at the right time, otherwise there may be device pairing data cache, resulting in unsuccessful problems.
manager.onDestroy();

Parameter Description

accessMode value
