Zigbee Sub-Device

Sub-Device network distribution means that smart devices rely on the hub to connect to Aqara. Therefore, the process of Sub-Device network distribution must be specific to a certain hub, and the hub completes device activation and message notification.

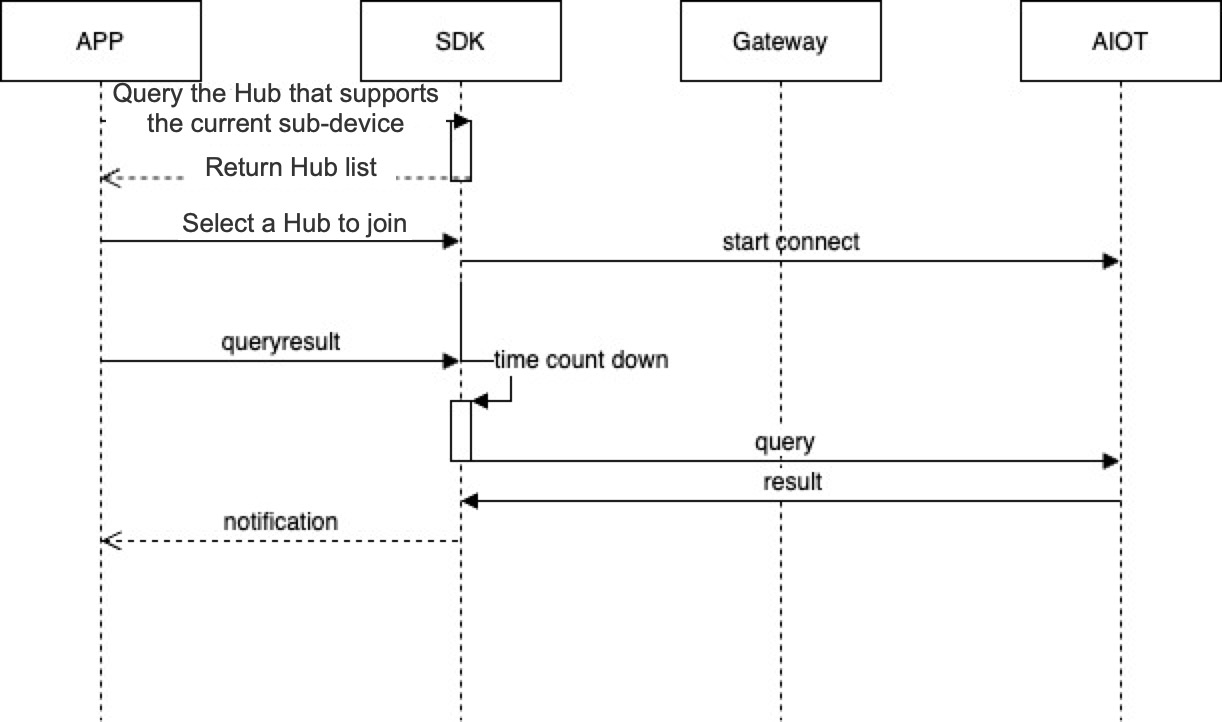

Device Pairing process

Flow Description:

1. Query the hub that supports the Sub-Device under the current account.
2. Select the hub, send data to let the hub enter the device pairing state.
3. The Sub-Device is successfully configured, and the hub sends data to the Aqara cloud platform.
4. Query the device pairing results from the Aqara cloud platform.

1. Start Sub-Device Device Pairing

Interface Description

+ (void)requestCanJoinGatewayFromWithIndex:(NSInteger)index pageSize:(NSInteger)pageSize model:(NSString *)model positionId:(NSString *)positionId comletion:(void (^)(id result, NSError *error))completion;

Parameter Description

Example:

[LMAccessNetRequest requestCanJoinGatewayFromWithIndex:0 pageSize:100 model:@"model.xxxxx.xxx" positionId:@"home.id" comletion:^(id  _Nonnull result, NSError * _Nonnull error) {

}];

2.Stop Device Pairing

Interface Description

+ (void)sendCancelAppPermisionToGateway:(NSString *)did completion:(void (^)(id response, NSError *error))completion;

Parameter Description | Parameter | Description | |---|---| |did|Hub ID| |completion|Method callback|

Example:

[LMAccessNetRequest sendCancelAppPermisionToGateway:did completion:nil];

3. Query Device Pairing Results

Interface Description

+ (void)queryChildDeviceAccessNetResultWithGatewayDid:(NSString *)did completion:(void (^)(id response, NSError *error))completion;

Parameter Description | Parameter | Description | |---|---| |did|Hub ID| |completion|Method callback|

Example:

[LMAccessNetRequest queryChildDeviceAccessNetResultWithGatewayDid:@"" completion:^(id  _Nonnull response, NSError * _Nonnull error) {

}];

Return parameter description

"result": {
    "timeStamp": 1685592290262,
    "parentDeviceId": "lumi1.6490c17ac4ec",
    "state": 1,
    "lang": 1
},
