Wi-Fi AP

Description

1. Overview

This article mainly introduces how to use the Device Pairing SDK (With UI) and Device Pairing SDK (Without UI) to configure Wi-Fi AP network.

2. Preconditions

1. Confirm completion Preparation
2. Confirm the completion of Environment Build
3. Complete Device Pairing SDK (With UI) or Device Pairing SDK (without UI) integration

3. Use

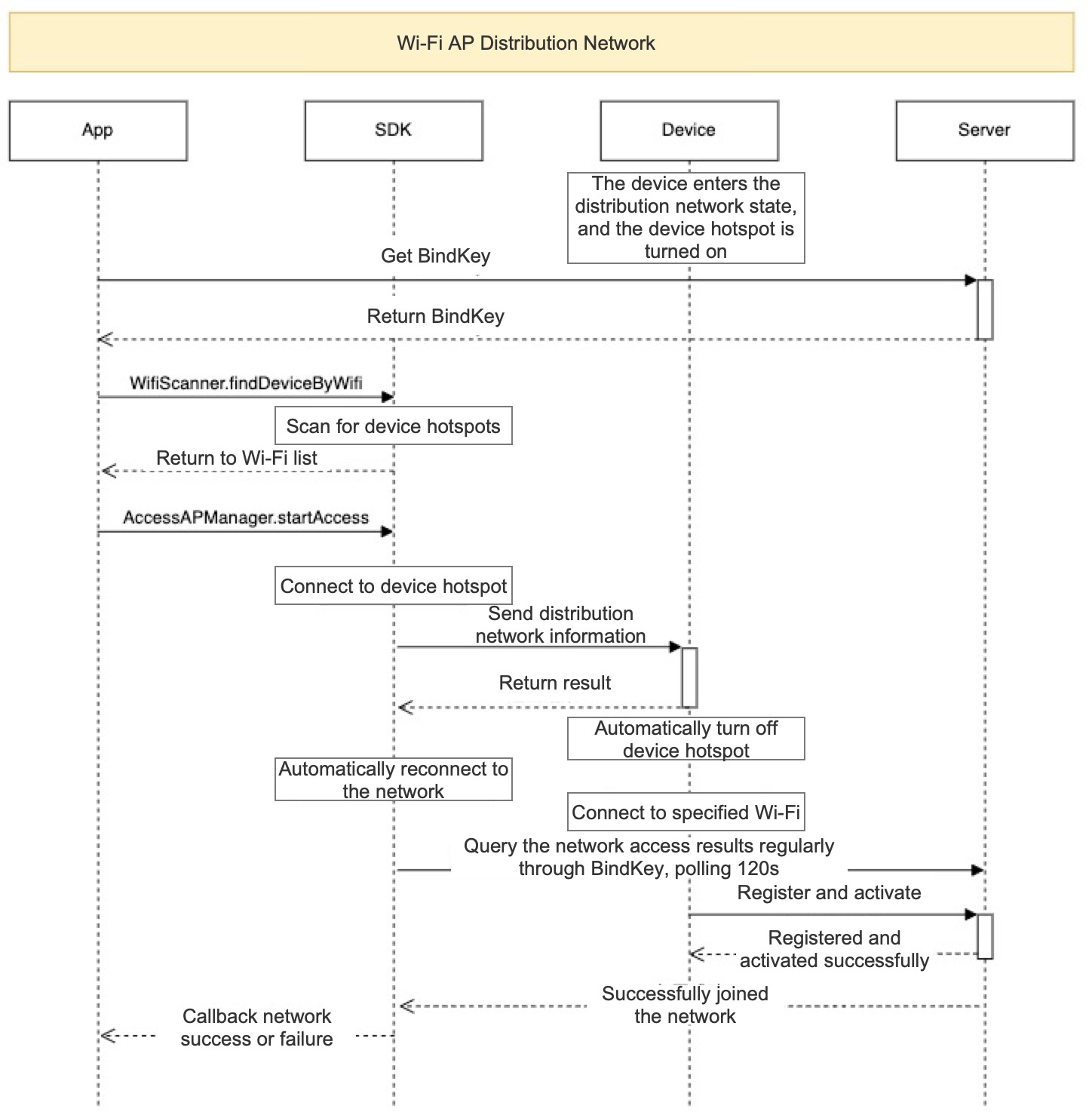

3.1 Device Pairing Process

Wi-Fi Ap network access means that after the device turns on the hotspot mode, the SDK sends the device pairing information to the device by connecting to the device's hotspot, and the device connects to Lumiyun through the Wi-Fi account and password in the device pairing information, and finally completes the activation operation .

3.2 Device Pairing SDK (With UI)

3.2.1 Jump to the device pairing device list page

Jump to the select device list page, which lists all the devices supported by the current SDK.

   LMAccessSDKManager.Companion.getInstance()
                .gotoAccessListPage(
                        this,
                        "homeId",
                        "roomId",
                        "coapServer",
                        new LumiResultCallBack() {
                            @Override
                            public void success(@NonNull WeakReference<Activity> weakReference, @Nullable String s) {

                            }

                            @Override
                            public void fail(@Nullable Integer integer, @Nullable String s) {

                            }
                        }
                );

Parameter Description

3.2.2 Jump to the specified device configuration page

LMAccessSDKManager.Companion.getInstance()
        .gotoAccessConfigModule(
                this,
                "deviceModel",
                "homeId",
                "roomId",
                "coapServer",
                new LumiResultCallBack() {
                    @Override
                    public void success(@NonNull WeakReference<Activity> weakReference, @Nullable String s) {

                    }

                    @Override
                    public void fail(@Nullable Integer integer, @Nullable String s) {

                    }
                }

        );

Parameter Description

3.3 Device Pairing SDK (without UI)

3.3.1 Get BindKey

The third-party app needs to request the cloud interface to obtain by itself. See Interface Documentation

3.3.2 Wi-Fi Search

WifiScanner wifiScanner = new WifiScanner(this);
wifiScanner.findDeviceByWifi(2000L)
        .onTerminateDetach()
        .as(AutoDispose.autoDisposable(AndroidLifecycleScopeProvider.from(this)))
        .subscribe(new Consumer<List<android.net.wifi.ScanResult>>() {
            @Override
            public void accept(List<android.net.wifi.ScanResult> scanResults) throws Exception {

            }
        }, new Consumer<Throwable>() {
            @Override
            public void accept(Throwable throwable) throws Exception {

            }
        });

Parameter Description

3.3.3 Connect to the Wi-Fi hotspot of the device and send the configuration information

AccessConfigBean accessConfigBean = new AccessConfigBean(
        "ssid",
        "password",
        "coapServer",
        "bindKey"
);

AccessAPManager manager = new AccessAPManager.WifiAccessBuilder()
        .setAccessInfo(accessConfigBean)
        .setDeviceAp("Device hotspot ssid")
        .setAccessMode(AccessAPManager.WifiAccessMode.ACCESS_MODE_UDP)
        .setAccessListener(new IAccessListener() {
            @Override
            public void connectSuccess() {

            }

            @Override
            public void accessResult(@Nullable String s) {

            }

            @Override
            public void accessFail(int i, @Nullable String s) {

            }
        })
        .build(this);
//Start to configure the network
manager.startAccess();

//Call resource recycling at the appropriate time, otherwise there may be data caching in the device pairing, resulting in unsuccessful problems.
manager.onDestroy();

Parameter Description

accessMode value
